Kontaktor 2NC2NO TOMZN TOCT1 4P 25A 2NO 2NC 220V Din Rail Kontaktor

Deskripsi

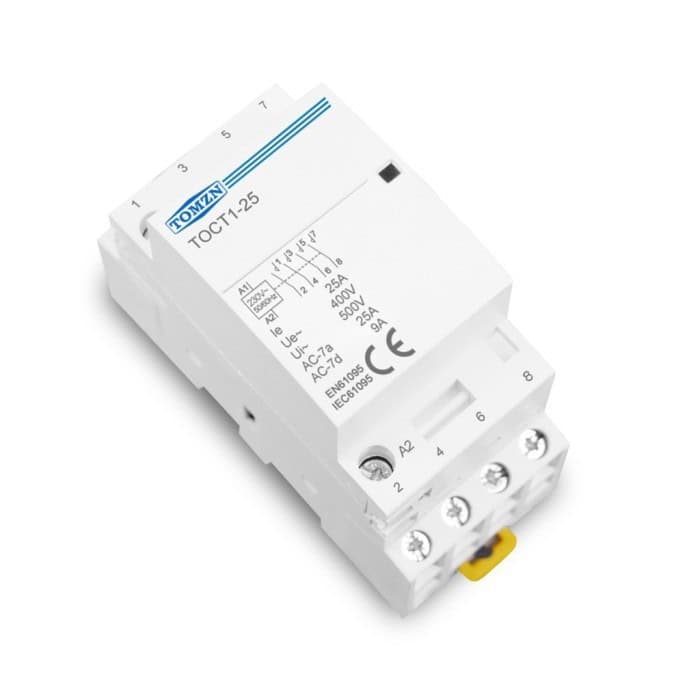

Kontaktor TOMZN 4P 25A, dengan kontak 2NO dan 2NC.

TOCT1 contactors are available in two versions:

●Contactors without manually-operated

●Contactors with manually-operated.
The breadth of the iCT contactor range satisfies most application cases.
TOCT1 contactors can be combined with auxiliary control, protection and indication functions

1. Electric ratings Current: up to 20A, 25A, 32A, 40A, 63A,

Voltage: 220V, AC50/60Hz;
Utilization category: AC-1, AC-7a, AC-7b;
Standard: IEC / EN 61095
2. Features
Compact design and modularization design;
Insulation material with excellent performances has been adopted to enhance the operation security to a great extent;

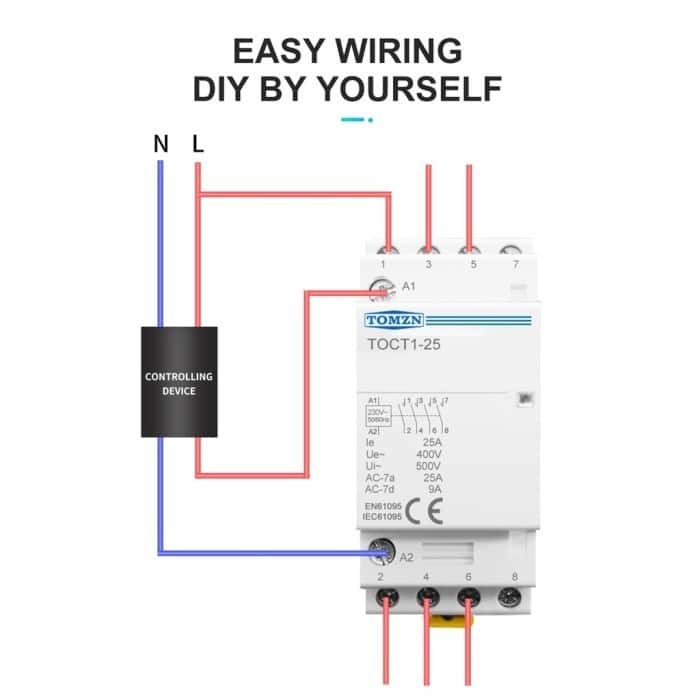

Elegant appearance. A mounting instruction diagram is appended for convenient operation;
No noise during operation.
