GARANSI :
1tahun (pabrik)
1bulan (toko)
Epever 5KW Hybrid Solar Inverter UP5000-HM8042 48VDC 5000W Solar Inverter Charger Built-In 80A MPPT Controller
Overviews:
UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator
charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system’s power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Highlights:
Supports the battery mode or non-battery mode
Surge current and reverse connection protections to support the lithium battery system perfectly
Three charging modes: Solar only, Solar priority, Utility & Solar
Two AC output modes: Utility priority and Inverter priority
High tracking efficiency of MPPT no less than 99.5%
PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of power
grid capacity
Advanced SPWM technology and pure sine wave output
Configurable battery charging current and discharging current
Configurable grid charging current
Self-learning SOC function
4.2 inch LCD to monitor and modify system parameters
Optional WiFi or GPRS Remote control via the RS485 isolated communication port
BMS-Link port and optional BMS-Link communication protocol module.
|
Model
|
UP3000-HM10022
|
UP3000-HM5042
|
UP5000-HM8042
|
|
|
Battery voltage
|
24VDC
|
48VDC
|
||
|
Input voltage range
|
21.60-32VDC
|
43.2～64VDC
|
||
|
Max. battery charging current
|
100A
|
50A
|
80A
|
|
|
Inverter Output
|
||||
|
Output power
|
3000W@30℃
|
3000W@30℃
|
5000W@30℃
|
|
|
Max. surge power
|
6000W
|
6000W
|
8000W
|
|
|
Output voltage range
|
220VAC(-6%～+3%)，230VAC(-10%～+3%)
|
|||
|
Output frequency
|
50/60Hz±0.2%
|
|||
|
Output mode
|
Single phase
|
|||
|
Output wave
|
Pure Sine Wave
|
|||
|
Load Power factor
|
0.2-1（VA≤continuous output power）
|
|||
|
Distortion THD
|
THD≤3%（Resistive load）
|
|||
|
Max.efficiency
|
93%
|
|||
|
Transfer time
|
10ms(Switch from the utility output to the inverter output)
15ms(Switch from the inverter output to the utility output)
|
|||
|
Utility input
|
||||
|
Input voltage range
|
176VAC~264VAC (Default)
90VAC~280VAC (Programmable)
|
|||
|
Utility input frequency range
|
40~65Hz
|
|||
|
Charge current
|
80A
|
40A
|
60A
|
|
|
Solar charging
|
||||
|
PV open circuit voltage
|
450V(At minimum operating environment temperature) 395V(25℃)
|
500V(At minimum operating environment temperature)
|
||
|
PV input Power
|
4000W (Note：For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)
|
|||
|
MPPT voltage range
|
80~350V
|
120~400V
|
||
|
Max. PV charging power
|
2875W
|
4000W
|
||
|
PV charging current
|
100A
|
50A
|
80A
|
|
|
Equalization voltage
|
29.2V(AGM default)
|
58.4V(AGM default)
|
||
|
Boost voltage
|
28.8V(AGM default)
|
57.6V(AGM default)
|
||
|
Float voltage
|
27.6V(AGM default)
|
55.2V(AGM default)
|
||
|
Tracking efficiency
|
≤99.5%
|
|||
|
Max charging conversion efficiency
|
98%
|
|||
|
General
|
||||
|
Surge current
|
60A
|
56A
|
95A
|
|
|
Zero load consumption
|
＜1.6A(without PV and utility connection, turn on the load output)
|
＜1.2A(without PV and utility connection, turn on the load output)
|
||
|
Enclosure
|
IP30
|
|||
|
Relative humidity
|
< 95%（N.C.）
|
|||
|
Working Temp.
|
-20 ℃~50℃ (When the working temperature reaches 30℃ or above, the load power will be reduced appropriately; full load working is
not supported) |
|||
|
Storage environment
|
-25℃~60℃
|
|||
|
Mechanical Parameters
|
||||
|
Dimension（LxWxH）
|
642.5×381.6x149mm
|
607.5×381.6x149mm
|
642.5×381.6x149mm
|
|
|
Gross weight
|
21KG
|
20KG
|
21KG
|
|
|

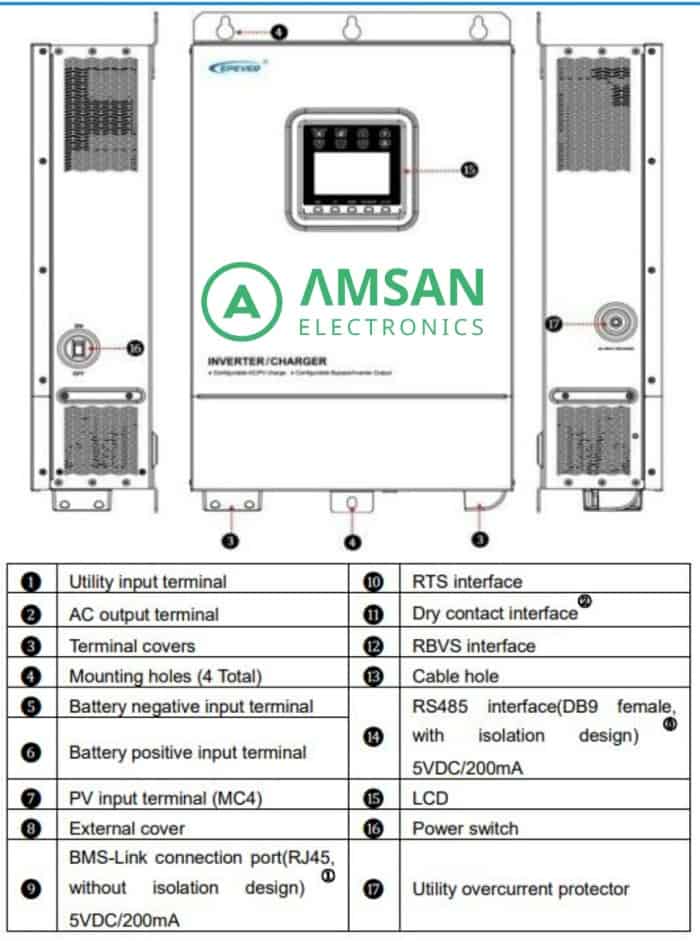

❶ Utility input terminal
|
❿ RTS interface
|
|||
|
❷ AC output terminal
|
⓫ Dry contact interface
|
|||
|
❸ Terminal covers
|
⓬ RBVS interface
|
|||
|
❹ Mounting holes(4 total)
|
⓭ Cable hole
|
|||
|
❺ Battery negative input terminal
|
⓮ RS485 interface(DB9 female, with isolation design) 5VDC/200mA
|
|||
|
❻ Battery positive input terminal
|
⓯ LCD
|
|||
|
❼ PV input terminal(MC4)
|
⓰ Power switch
|
|||
|
❽ External cover
|
⓱ Utility overcurrent protector
|
|||
|
❾ BMS-Link connection port(RJ45, without isolation design) 5VDC/200mA
|
||||
Support no batteries mode, here is the wiring diagram
Support batteries mode, here is the wiring diagram(lead-acid and lithium batteries both)
Packing:
