Deskripsi
Brand Name : AMSAN
Model Number : VS3024/VS3048
Input Voltage : 24V/48v
Output Voltage : 220V
Output Current : 15A
Output Frequency : 2400W
Output Type : Single

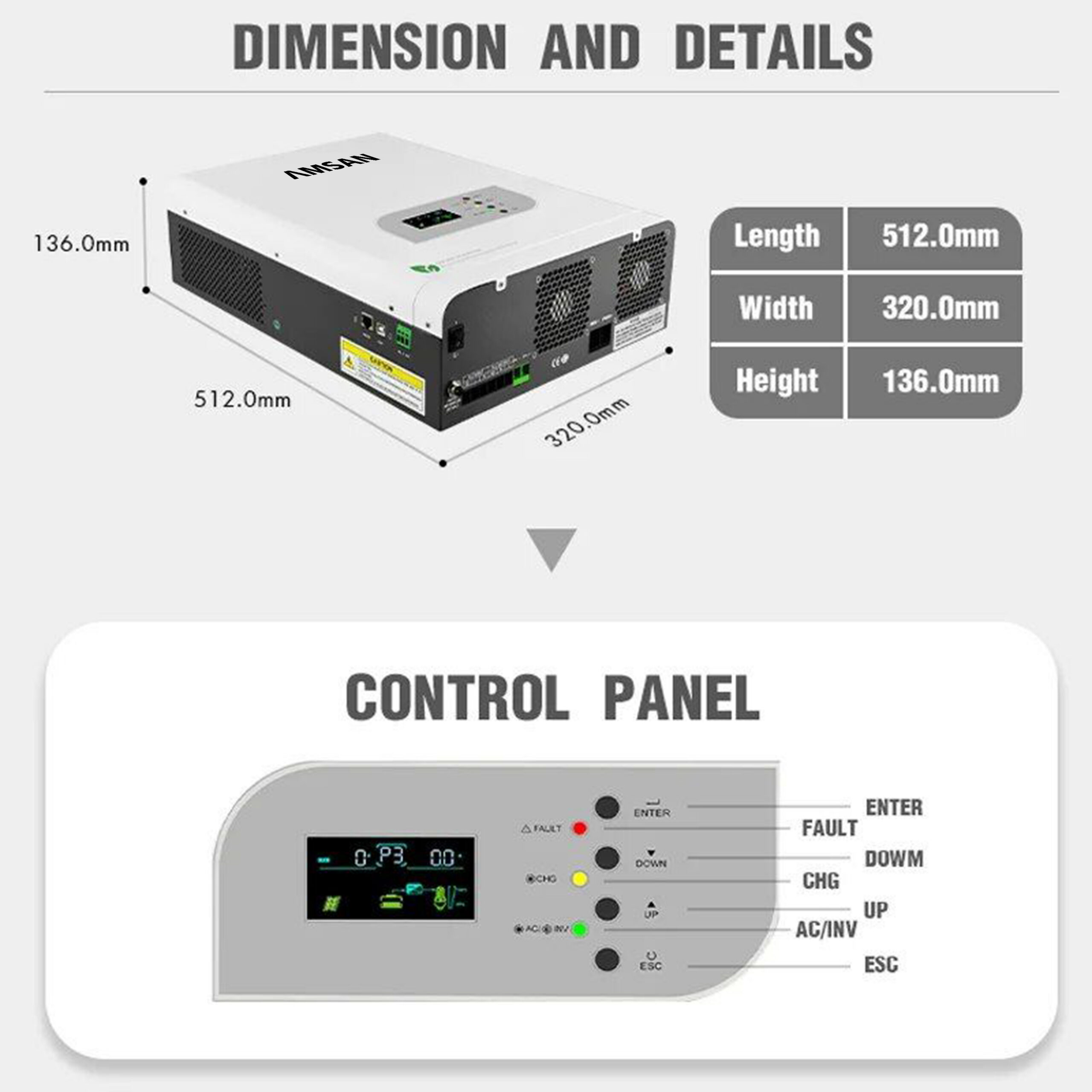

Size : 512x320x136mm
Type : DC/AC Inverters
Inverter Efficiency : 98%
Certificate : CE
Warranty : 1 year
Weight : 16kg
Protection : Overload short circuit low voltage
Output waveform : Prue Sine Wave
Function : DC start and automatic self -diagnostic function

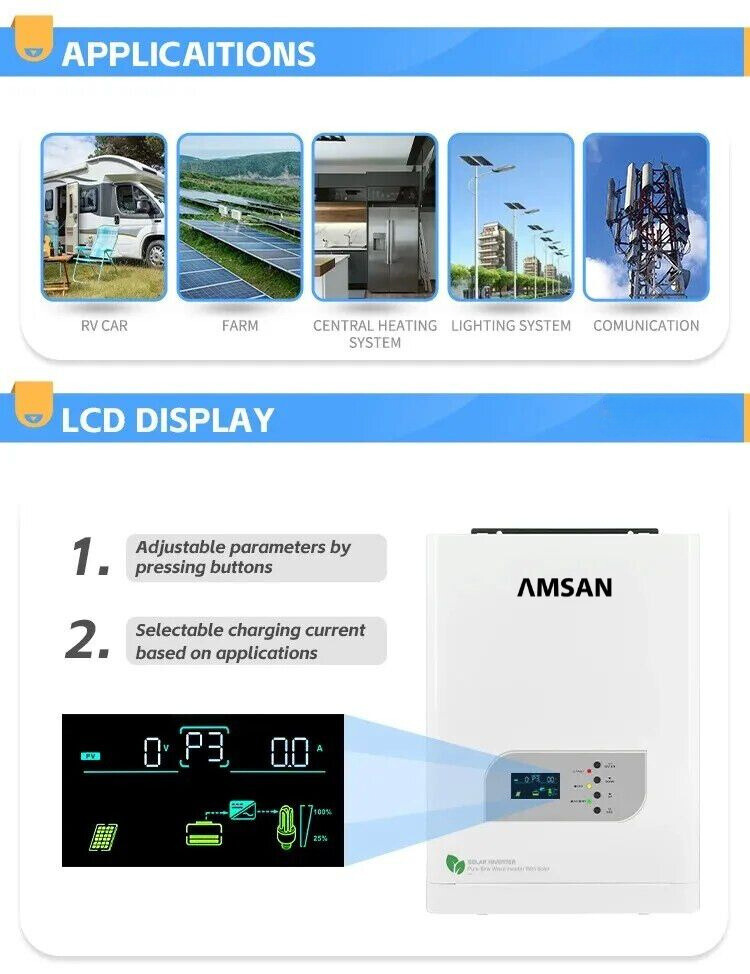

Display : LCD
Phase : Single Phase Power Inverter
Frequency : 50/60 IHZ
Feature : Safety
Battery type : Lead Acid Lithium
Communication : WIFI / GPRS
If you have any questions, please contact customer service or add WhatsApp: +6282219445758
Model | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA |
Input Voltage(DC) | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V |
Nominal Voltage | 220VAC(Standard) | ||||
Rated Power | 800W | 1200W | 1600W | 2400W | 4000W |
Waveform | Pure Sine Wave | ||||
Battery Type | VRLA / GEL /GEL DEEP CYCLE/LITHIUM | ||||
Maximum pv array power | 12V:800W / 24V:1600W/ 48V:3200W | ||||
PV Input Voltage Range | 12V:MPPT 15V-150VDC / PWM 15V-30VDC | ||||
24V:MPPT 30V-150VDC / PWM 30V-60VDC | |||||
48V:MPPT 60V-150VDC / PWM 60V-105VDC | |||||
Maximum solar charging current | 60A | ||||
Maximum AC charging current | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A |
Transfer Time | <10ms(UPS mode)/<20ms (INV mode) | ||||
Load peak ratio | (MAX)3:1 | ||||
Static power(W) | 5W | 11.5W | 13W | 15W | 20W |
Protections | Power supply: Input overcurrent protector | ||||
