Deskripsi

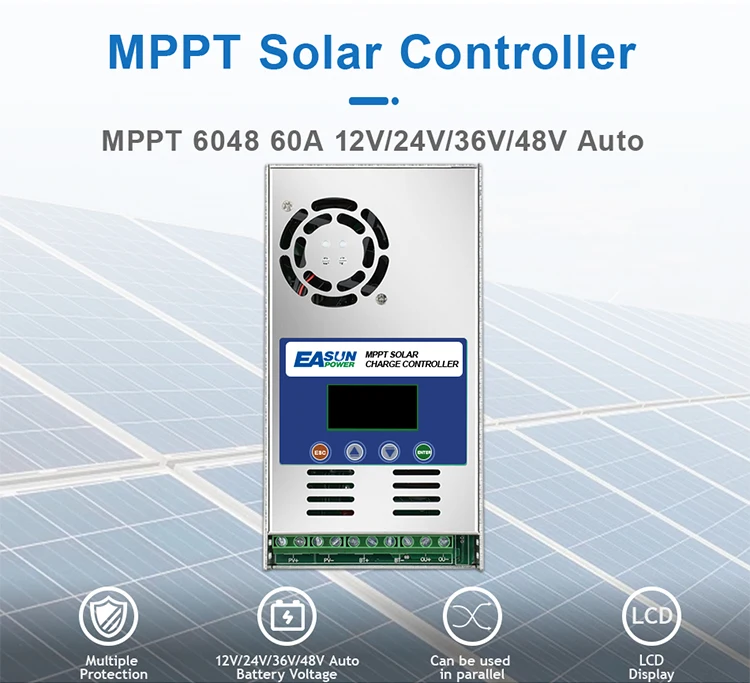

EASUN POWER Solar Charger Controller MPPT 60A dan Panel Surya Solar Charge Regulator 12V 24V 36V 48V Baterai PV Input 190VOC

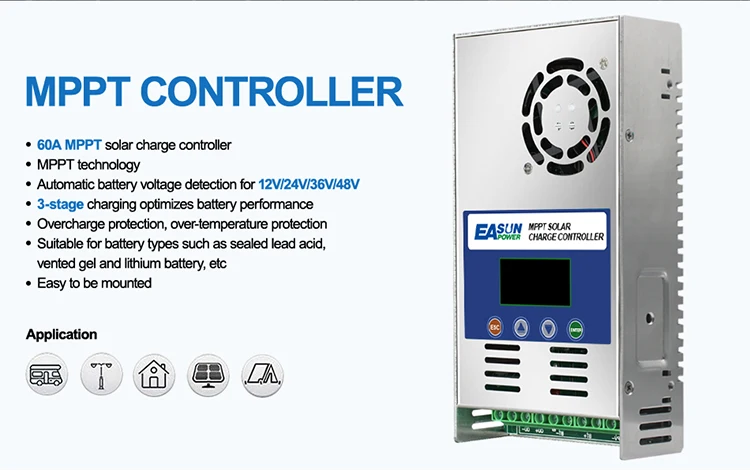

Fitur:
Pengontrol MPPT 100%
Teknologi Pelacakan Titik Daya Maksimum Cerdas
Pengontrol DSP internal dengan kinerja tinggi
Deteksi tegangan baterai otomatis 12V/24V/36V/48V
Pengisian tiga tahap mengoptimalkan kinerja baterai

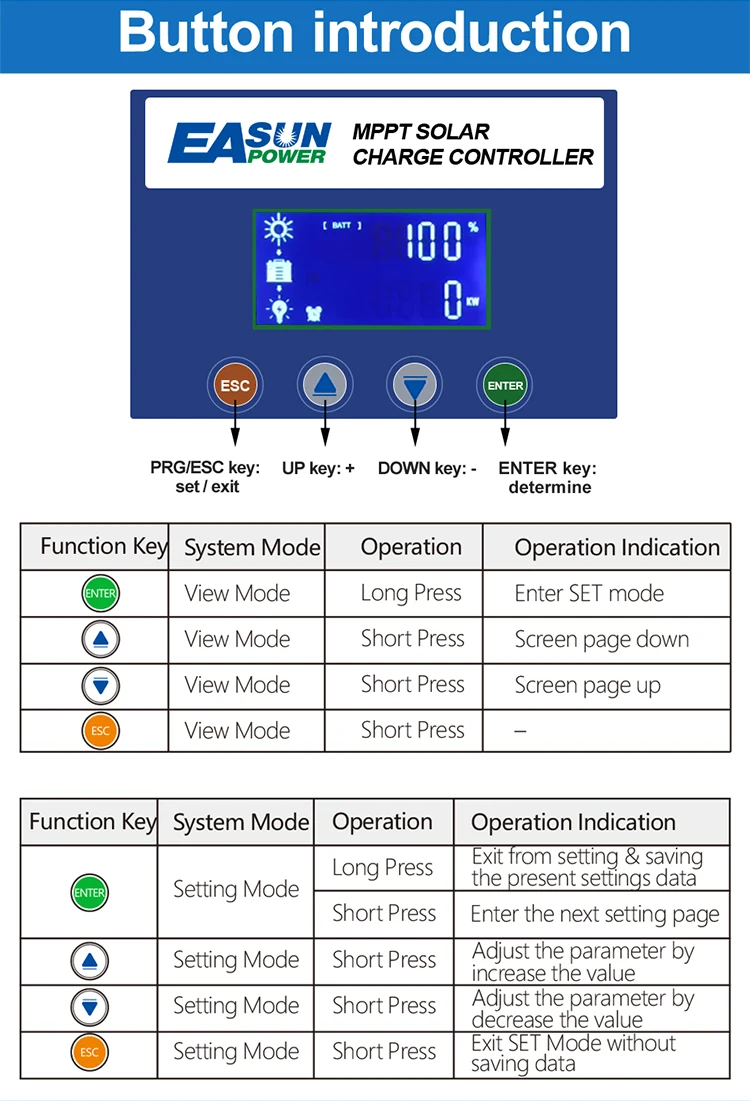

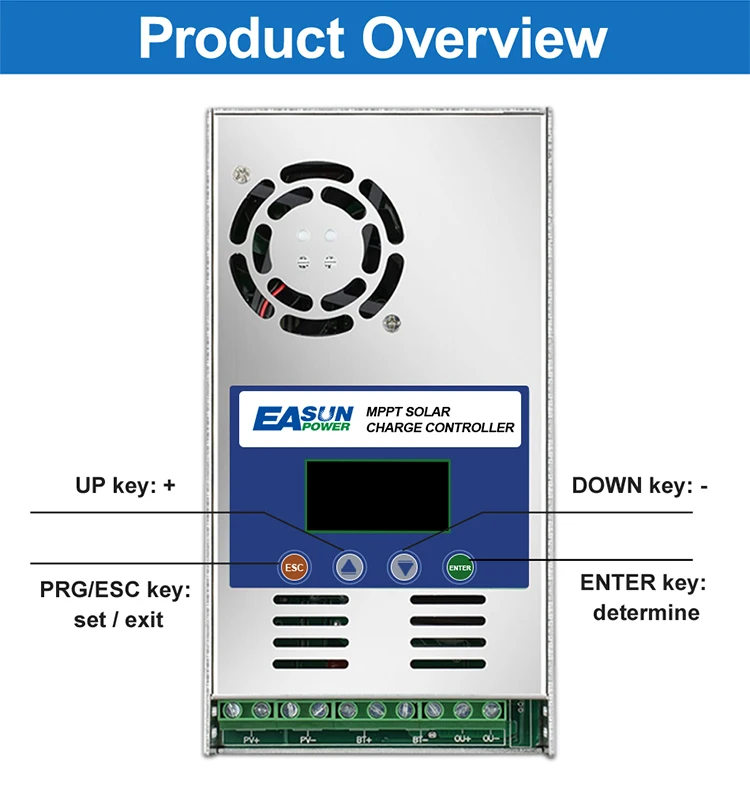

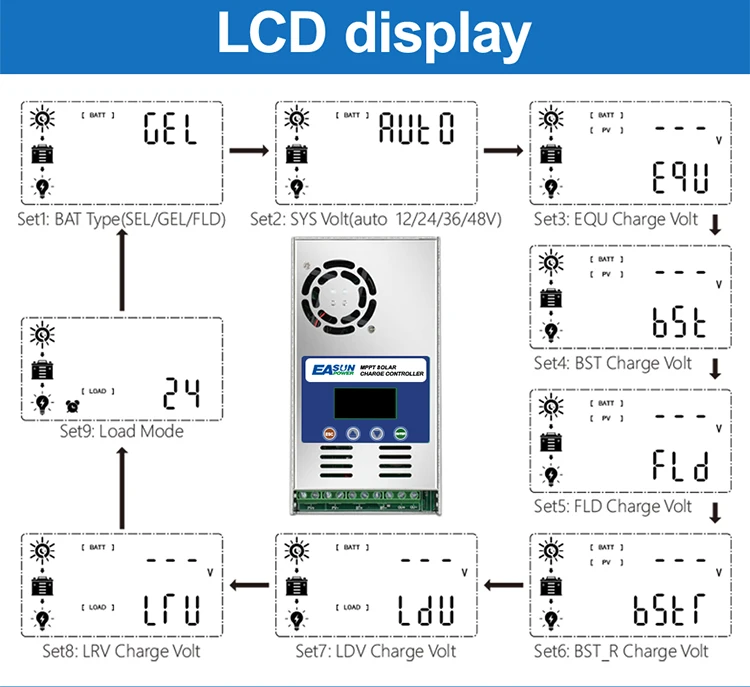

Layar LCD multi-fungsi
Perlindungan polaritas terbalik dari panel surya
Perlindungan overcharge
Dapat dipasang dengan mudah
Cocok untuk jenis baterai asam timbal yang disegel, Gel berventilasi, dan baterai Lithium
12V system (360W)
12V system (480W)
12V system (600W)
12V system (720W)
|
Item
|
Parameter
|
||||||
|
Models
|
ICharger MPPT 6048
|
||||||
|
Charging mode
|
3-stage: constant current(MPPT), constant voltage, floating
|
||||||
|
System Voltage
|
12/24/36/48/Auto
|
||||||
|
Max PV Input Power
|
720W/12V; 1440W/24V 2160W/36V; 2880W/48V
|
||||||
|
Max PV Input Voltage
|
190Voc
|
||||||
|
Battery voltage automatic recognition |
12V system (DC8.7V-DC15.5V);24V system (DC16V-DC31V)
36V system (DC33V-DC41V);48V system (DC42V-DC64V)
|
||||||
|
Overcharging protection voltage
|
12V system (16V);24V system (32V) 36V system (48V);48V system (64V)
|
||||||
|
Limited current protection
|
61A
|
||||||
|
Max efficiency
|
≥98.1%
|
||||||
|
PV utilization
|
≥99%
|
||||||
|
Auto Temperature Compensation
|
-3mV/2V/ºC
|
||||||
|
Protection Function
|
|||||||
|
Temperature protection
|
75℃
|
||||||
|
Fan-on temperature
|
>45℃
|
||||||
|
Fan-off temperature
|
<40℃
|
||||||
|
Electromagnetic compatibility
|
Accord to EN61000, EN55022, EN55024
|
||||||
|
Enclosure
|
IP21
|
||||||
|
Environmental temperature
|
-20℃ ~ +55℃
|
||||||
|
Storage temperature
|
-40℃ ~ +75℃
|
||||||
|
Battery Parameters
|
|||||||
|
Battery Type
|
System Volt
|
EQU
|
BST
|
FLD
|
BST_R
|
LRV
|
LDV
|
|
GEL
|
Auto
|
14.2V
|
14.2V
|
13.8V
|
13.2V
|
12.6V
|
12.0V
|
|
SEL
|
Auto
|
14.6V
|
14.4V
|
13.8V
|
13.2V
|
12.6V
|
12.0V
|
|
FLD
|
Auto
|
14.8V
|
14.6V
|
13.8V
|
13.2V
|
12.6V
|
12.0V
|
|
USE
|
Auto/12/24/36/48V
|
Defined by users
|
|||||
|
LI
|
12/24/36/48V
|
—
|
Defined by users
|
—
|
—
|
Defined by users
|
|
|
The maximum
PV input power (The total power rated of PV can’t be over this watt that will break the controller.) |
|||||||
|
30A
|
40A
|
50A
|
60A
|
||||
|
24V system (720W)
|
24V system (960W)
|
24V system (1200W)
|
24V system (1440W)
|
||||
|
36V system (1080W)
|
36V system (1400W)
|
36V system (1800W)
|
36V system (2100W)
|
||||
|
48V system (1440W)
|
48V system (1700W)
|
48V system (2200W)
|
48V system (2800W)
|
||||
